Dynostar Models D50i and D50ECB
Product information Dynostar Models D50i and D50ECB
Dynostar model D50の特徴は【ローコスト、ハイパフォーマンス】です。
model D50シリーズはDynostarの最新モデルです。
D50シリーズはモジュール式となっています。
機能拡張は、ダイナモメーター本体にモジュールを追加構成することで行います。
D50シリーズには、D50iとD50ECBの2つの種類があります。
Dynostar Model D50i

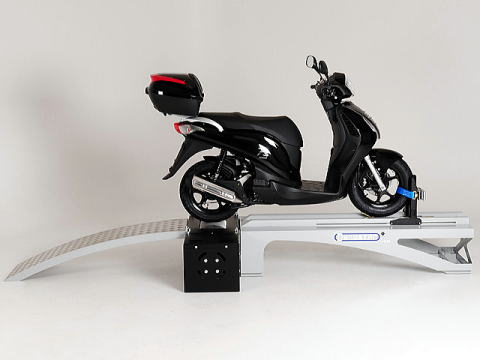

D50iは測定に慣性の原理を利用したスクーターおよび小排気量のオートバイ向けのシャーシダイナモ
です。最大で112.4kw(150馬力)、最高速度は300km/hまでの測定に対応。
DynostarモデルD50シリーズは、モジュールで構成されているので、渦電流ブレーキ式負荷装置
(リターダー)を追加することでD50iの測定能力はD50ECB相当にアップグレードすることが可能です。
Dynostar Model D50ECB
D50ECBは、標準構成で渦電流ブレーキ式負荷装置(リターダー)を採用していますので、実走に近い
状況での測定が可能です。最大で119.4kw(160馬力)、最高速度は300km/hまでの測定に対応。

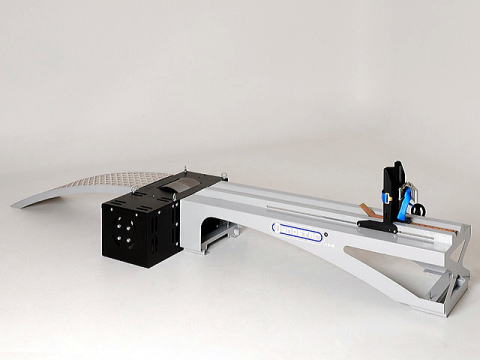

モデルD50iおよびD50ECBは、傾斜路および調節式前輪固定部が標準構成に含まれいています。
Technical specifications Dynostar Model D50i
基本パッケージ ¥2,090,000〜
Weight: |
300kg |
Dimensions (LxWxH): |
2.21x0.62x0.75(m) |
Power requirements |
230V 2A |
Air requirements |
6 bar |
Max. speed |
300 km/h |
Drum width: |
0.25 m |
Drum diameter: |
0.39 m |
Number of drums: |
1 |
Total inertia: |
4.43 kgu |
Equivalent vehicle mass: |
116.5 kg |
Max. wheel power: |
|
Max. power: |
112.4 kw (150.7HP) |
Technical specifications Dynostar Model D50ECB
基本パッケージ ¥3,520,000〜
Weight: |
400kg |
Dimensions (LxWxH): |
2.21x0.89x0.75 |
Power requirements |
230V 20A |
Air requirements |
6 bar |
Max. speed: |
300 km/h |
Drum width |
0.25 m |
Drum diameter: |
0.39 m |
Number of drums: |
1 |
Total inertia: |
4.70 kgu |
Equivalent vehicle mass: |
123.6kg |
Peak power absorption: |
|
Max. power cold: |
119.4 kw (160.1 HP) |
Max. power 3 min.: |
55 kw (73.8 HP) |
Max. power continuously |
42.9 kw (57.5 HP) |
Max. wheel power |
|
Max. power: |
119.2 kw (155.9 HP) |
Standard features hardware:
- Ramp
- Front Wheel Adjustment
- Mini- DAS Data Acquisition System
- Dual inertia- disc
- Eddy current brake (not D50i)
- Advanced Dyno Station Software package
- Junction Box
- 37 pin cable (length 7m)
- RS232 cable (length 3m)
- Calibration mass (not D50i)
- Remote control (length 2.5m)
- Straps (3 pieces)
- Users manual
- CE marking
- Emergency brake
- EMC filter
Standard features software
- Dynamic performance measurement: Roll on, Negative test, All gear, Variable transmission, Fast acceleration, Multiple speed. (Variable transmission and Multiple Speed only I/C with RPM module)
- Static performance measurement (not D50i)
- Acceleration test
- Speedometer test
- Weather station
- Performance correction, conform DIN, EEC en SAE standard
- Real time display of RPM, vehicle speed, traction, torque, horsepower.
- Simulation of drive- resistance and air- resistance to create a real road
simulation (not D50i)
- Automatic calculation of driveline losses and calculation of the power output at the crankshaft.
|
