 Dynostar Model 70
Product information Dynostar Model 70 (pit model and above ground model)
The Dynostar Model 70 is the ultimate tool for tuning and diagnostic activities. Many reputable companies in the trade, including 6-times World Champion Ten Kate Honda, have already discovered the quality of the Dynostar Model 70.

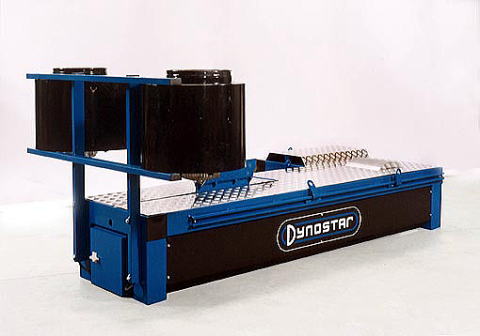

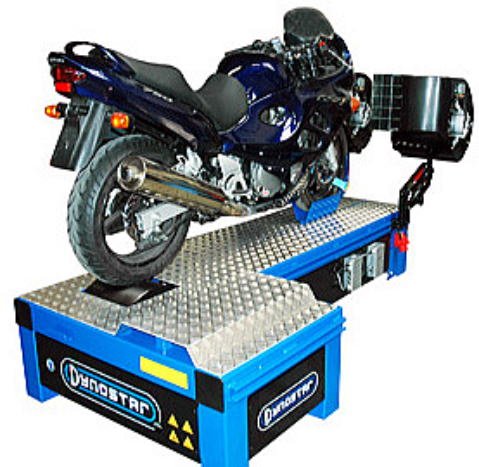

The Dynostar Model 70 is available as “above ground” model and as “pit” model. The Dynostar Model 70 is equipped with a roller with high mass inertia, and can absorb dynamic power up to 465 kW and speeds up to 325 km/h.

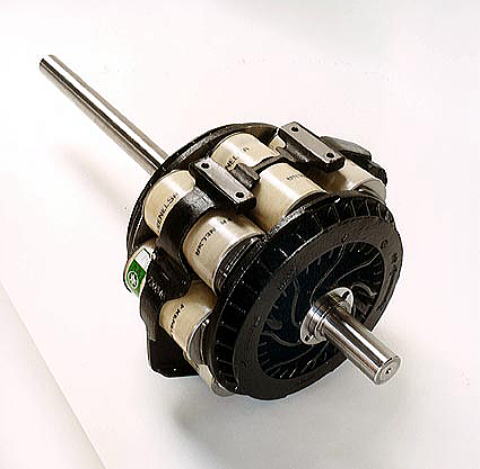

The powerful, air-cooled eddy current brake allows the dynamometer to absorb power up to 355 kW (with cold eddy current brake). For anyone professionally testing and tuning very high power motorbikes, the optional tungsten carbide anti-slip coating provides the answer. With this option, wheel slip is a thing of the past.
The Dynostar Model 70 is a highly accurate dynamometer. The dynamometer is also vibration-free, because the roller and retarder are mounted on the same shaft.
Product information Dynostar Model 70 (pit model and above ground model)
The powerful, air-cooled eddy current brake allows the dynamometer to absorb power up to 355 kW (with cold eddy current brake). For anyone professionally testing and tuning very high power motorbikes, the optional tungsten carbide anti-slip coating provides the answer. With this option, wheel slip is a thing of the past.
The Dynostar Model 70 is a highly accurate dynamometer. The dynamometer is also vibration-free, because the roller and retarder are mounted on the same shaft.
Technical specifications Dynostar Model 70
基本パッケージ ￥5,000,000～
| Weight: |
800kg |
| Dimensions (LxWxH): |
2.53x1.22x089(m) |
| Power requirements |
230V 16.5A |
| Air requirements |
6 bar |
| Max. speed: |
325 km/h |
| Drum width |
0.30 m |
| Drum diameter: |
0.48 m |
| Number of drums: |
1 |
| Total mass inertia: |
16.110 kg㎡ |
| Equivalent vehicle mass: |
279.7 ｋｇ |
| Peak power absorption: |
|
| Max. power cold: |
355.0 kw (476.1 HP) |
| Max. power 3 min.: |
231.5 kw (310.4 HP) |
| Max. power continuously |
138.9 kw (186.3 HP) |
| Max. wheel power |
|
| Max. power: |
465.1 kw (623.7 HP) |
Standard hardware features:
- DAS Data Acquisition System
- Advanced Dyno Station Software package
- Junction Box
- 37-pin cable (length 7 m)
- RS232 cable (length 3 m)
- Calibration weight
- Remote control (length 2.5 m)
- Straps (2 pcs)
- Instructions
- CE marking
- Emergency brake
- EMC filter
Standard software features:
- Static power measurement
- Dynamic power measurement: Roll on, Negative test, All gear, Variable transmission, Fast acceleration, Multiple speed
- Acceleration test
- Speedometer test
- Weather station
- Power correction to DIN, EEC and SAE standard
- Automatic braking after completing dynamic test
- Real time display of engine speed, power, traction and vehicle speed in software
- Simulation of roller and air resistances for simulating situations on the road
- Automatic calculation of losses in the drive line and calculation of power at crankshaft
|
